IPM 300 sloping staircase platform
Platform description
- Simple solution of architectural barriers caused by staircases, balconies, terraces, slopes etc.
- Simple operation, easy maintenance, and reliable operation.
-
Various extra modifications and accessories can be performed on request, e.g.:
- various types of platform controls
- loudspeaking telephone
- automatic tilting of access bridges, transport plate and barrier handrail on the platform
- modification of dimensions of the transport plate for spatial reasons etc.
- Complete „turnkey“ supplies, including design documents, assembly, revision, and commissioning.
- The platforms can be installed in new as well as existing buildings and in an external as well as an internal environment.
- All our equipment is provided with guarantee and post-guarantee service.
- The equipment is provided with a TÜV CZ s.r.o. certificate and meets all current standards and regulations, including the requirements of Decree No. 398/2009 Coll.
Technical parameters
| Incoming supply | cabel or battery |
| Maximum time of uninterrupted operation by full load (by battery supply) | cca 70 min. |
| Charging time | cca 12 hour |
| Number of charging places | by the number of stations |
| Charging method | automatic |
| Battery lifetime | cca 4 years |
| Sloping angle | 0 - 50° |
| Minimum staircase width | 980 mm |
| Minimum distance from wall for the tilted platform | 290 mm |
| Maximum travel length | cca 50 m |
| Load bearing capacity of the platform | 250 kg |
| Maximum dimensions of the tilting transport plate | 1 400 x 900 mm |
| Travel speed | 0,06 - 0,12 m/s |
| Working voltage | 3 × 400V/50Hz or 1 × 230V/50Hz |
| Control voltage | 24 V |
| Power input | max. 650 W |
| Transport plate tilting | by hand or automatic |
| Raid plate and safety handrail tilting | automatic |
| Safety stop function of raid plate by going to obstruction | yes |
| Safety stop function of safety floating floor by going to obstruction | yes |
| Platform control | by the push-buttons on the platform and in the stations or by the remote control |
| Running temperature | -10 - +50°C |
| Max. atmospheric humidity | 90% |
| By hand emergency drive | yes |

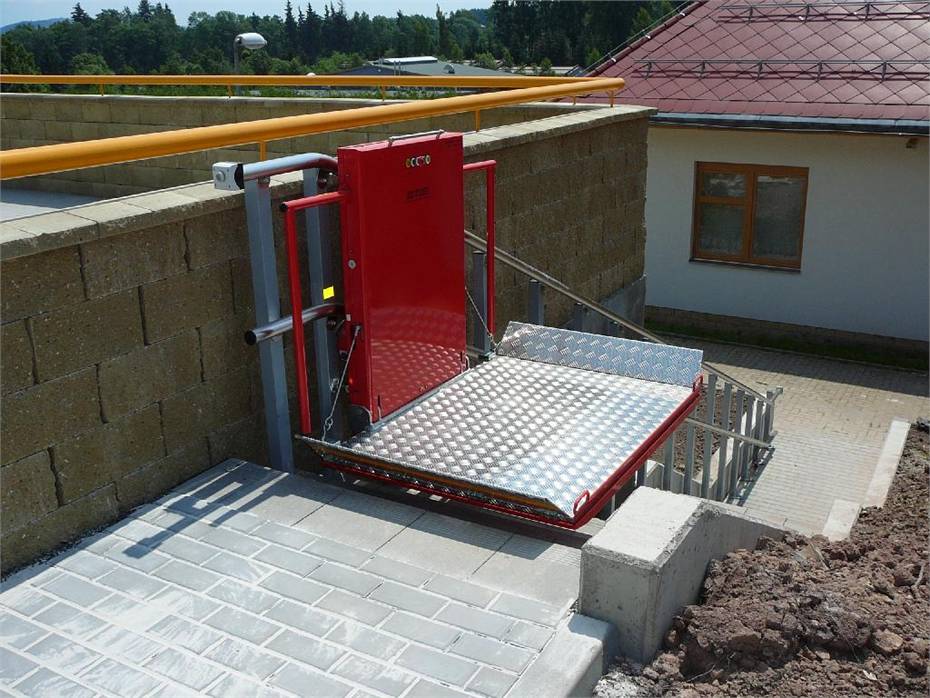

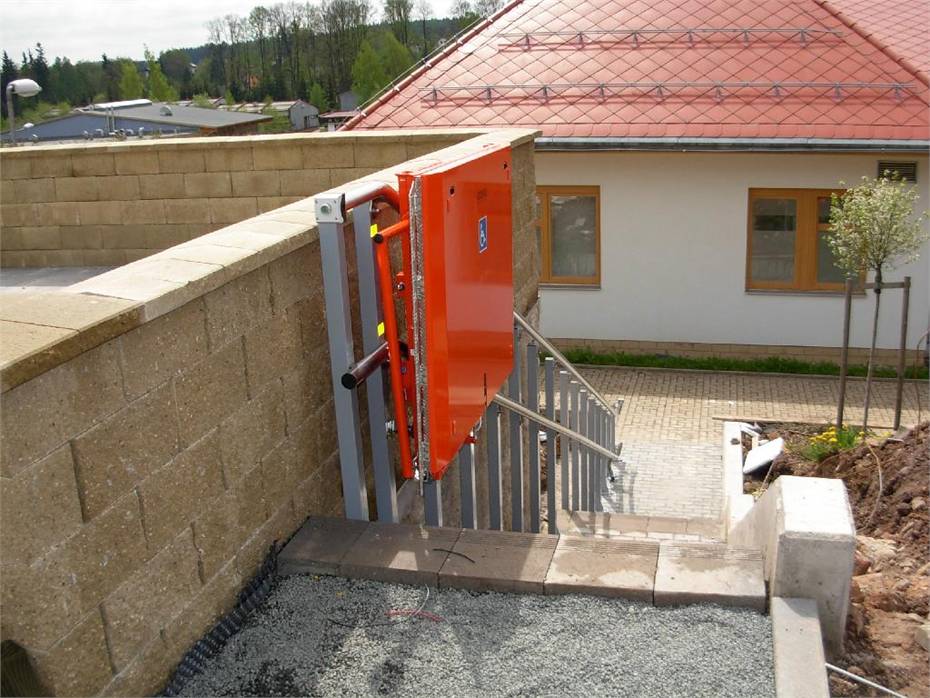

Product gallery
