Inflatable rescue tents

Tents with inflatable structure are designed for a short-term and long-term use in many areas, especially in cases with an immediate need for background, but even to accommodate people, to deposit material etc. The tents can be connected among each other and so a bigger interconnected complex can be created, e.g. a field hospital.

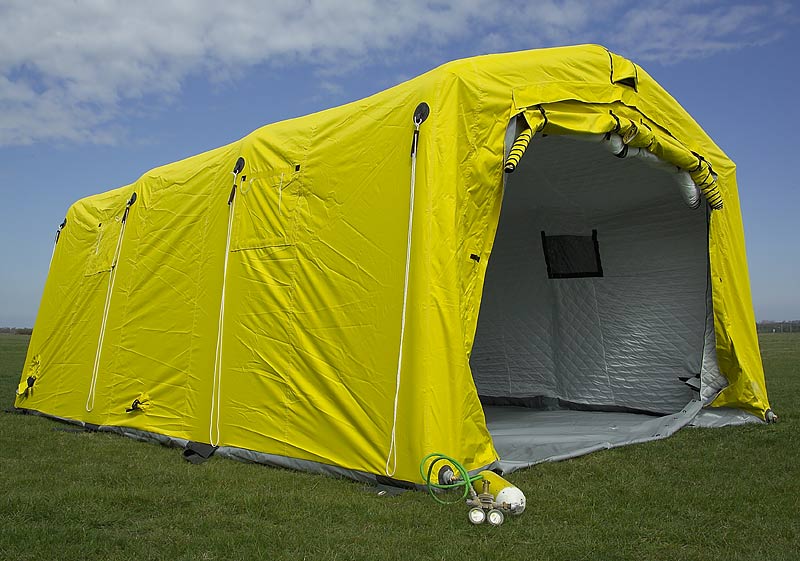

The tent frame consists of inflatable chambers, the roof is made from PVC-coated fabric and it is available in several colours. The tent floor is made from a strong material. Depending on the customer´s wish, the floor is either fixed to the roof or the floor can be removable, i.e. attached by means of Velcro.

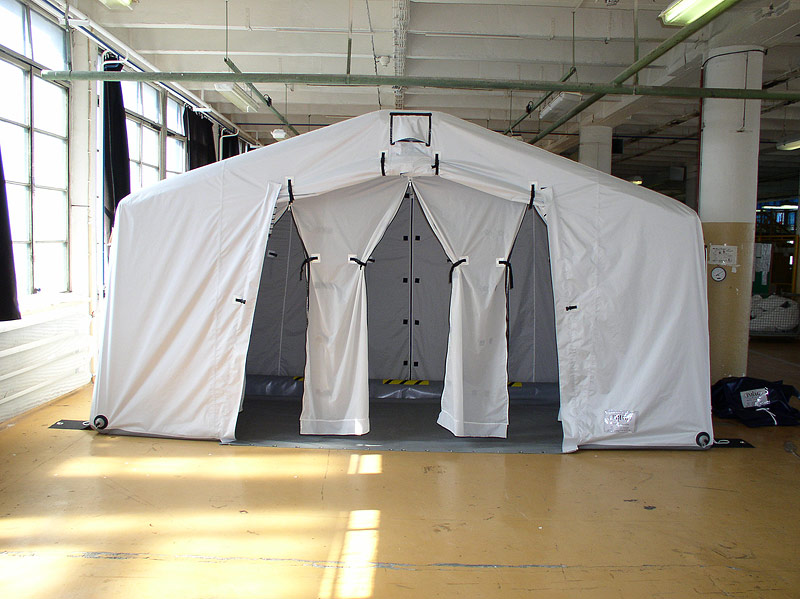

The tent entrance is equipped with zip fasteners, at the floor there are reversible canvas fasteners with rings. The tent has ground peg fastening flaps evenly distributed along the floor perimeter and guy ropes on support arches ensure the shelter remains stable in all weathers. When the tent is set up on such surface where the pegs cannot be used, anchor it by means of sand or water filled bags placed on fastening flaps. Straps for devices, lamps etc. are attached to the support arches of the inflatable structure inside the shelter. The side walls of the shelter contain openings for heating, air conditioning, electro installation cables etc. Over the entrance there are air venting openings with net for a natural tent venting.

Upon request, the tents can be equipped with a removable hygiene or isolating liner, with lengthwise or crosswise partition curtains to divide the inner space, as well as with windows consisting of a film and mesh.

Advantages

• Easy deployment within a few minutes after being connected to air supply
• Inflatable with pressure air or electrical blower
• Quick-coupling device to connect the pressure air supply
• Safety relief valve

• Inflatable structure with two-chambers
• High air tightness and strength of the inflatable structure
• Tent roof made from PVC coated fabric in white, yellow, orange, red, khaki green colours
• Tent floor made from a high-strength material with antiskid treatment
• Tent entrance is equipped with zip fasteners, at the floor there are reversible canvas fasteners with rings
• Ground fastening flaps and guy ropes on support arches of the structure to secure the stability in all weathers, on a hard surface the tent can be anchored by means of weight bags filled with water or any other weight placed on the ground fastening flaps
• On the structure inside the tent, there are fastening straps for lamps, devices and similar
• Venting mesh over the entrance to ensure a natural air exchange
• Side walls contain 2 closable openings with diameter 350 mm to connect heating, air condition
• Side walls contain 2 closable openings with diameter 150 mm to connect electro installation cables, hoses
• Anchor and repair set and hand pump are included
• Packed in a transport bag
• Ideal base during a rescue action
• For short-term and long-term use in many areas – in case of events with an immediate need for hinterlands, for accommodation of people, material storage and similar.
• Long lifetime with only minimum maintenance and repair required
• Selection from many types, sizes and colours
• Easy handling and operation
• Service centre in the manufacturer´s plant

On request

• Three-layers windows – roof material, film, net
• Removable floor, i.e. attached by means of Velcro
• Removable hygiene liner

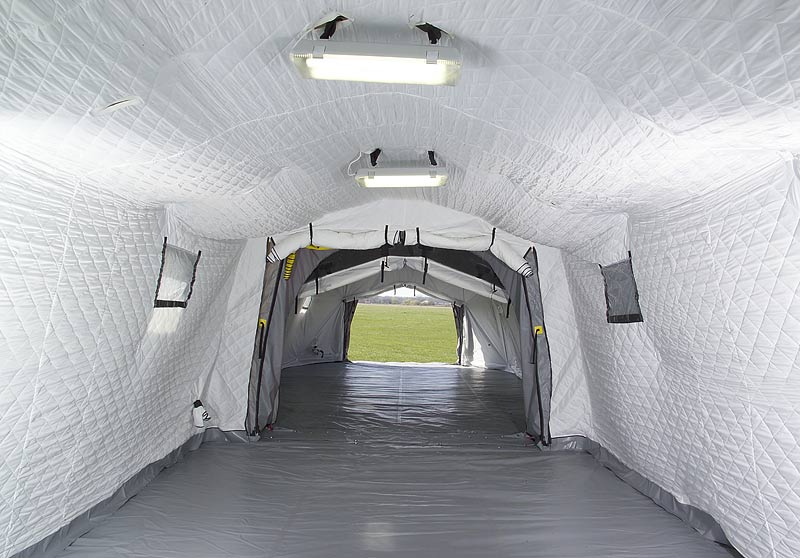

• Removable insulation liner

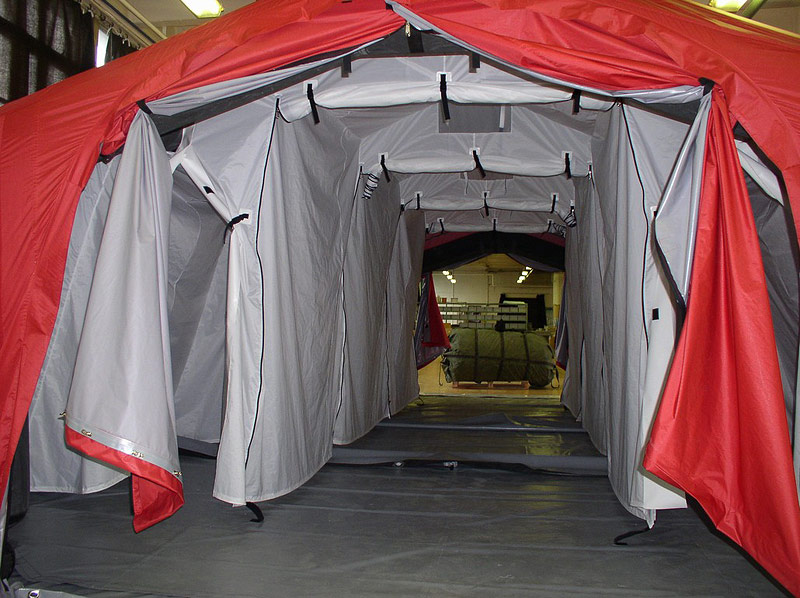

• Lengthwise or crosswise partition curtains to divide the inner space
• Connecting passages for connection of tents into bigger units and combinations, e.g. field hospitals
• Connecting passage for connection between tent and container
• Front shelter for container
• Side (technical) entrance
• Weight bags to be filled with water for anchoring the tent on a hard surface
• Additional accessories:
  • heating
  • air condition
  • additional solid floor
  • lamps etc.

Shower and decontamination tents with the built-in shower

• Inflatable tents with the built-in shower, water distribution system and a basin
• Removable built-in shower attached to the structure by means of Velcro
• Partition curtain to divide the space into the part for taking the clothing off, part for having shower and part for getting dressed
• Lengthwise partition for division into separate corridors
• Basin in the shower part – removable or non-removable
• Specific arrangement of partition curtains, water distribution system and its connection upon customer´s request

Technical parameters

Tents with the straight structure

Tent type	Internal useful area (m2)	Weight (kg)	3D model of frame	Photo
GTX-10	10	60
GTX-20	20,5	78
GTX-24	24	85
GTX-33	30	104
GTX-45	44,5	125

Tents with bevelled structure and tubes mounted below the transverse tubes

Tent type	Internal useful area (m2)	Weight (kg)	3D model of frame	Photo
GTX-30	28	100
GTX-40	39	125
GTX-50	50	140

Tents with bevelled structure and integrated

Tent type	Internal useful area (m2)	Weight (kg)	3D model of frame	Photo
GTX-40/6	45,5	135
GTX-50/6	56	150

Connecting tents

Tent type	Internal useful area (m2)	Weight (kg)	3D model of frame	Photo
GTX-16	14	65
GTX-25	23	85

Note: Data in the chart are indicative. Upon customer´s request other dimensions are possible.

Colours available

Material used

Floor – PES textile double-sided PVC coating, high-strength, abrasion proof, water-proof, with anti-skid modification, surface weight approx. 520 g/m²
Inflatable frame – PAD fabric double-sided rubber mixture coating, high-strength, abrasion resistant, air-proof
Internal partition curtain – PES fabric one-side PUR coating, water-proof
Isolating liner – Quilted material consisting of three layers: PES fabric, PES fleece and PES fabric resp. non-woven, surface weight approx. 250 g/m²
Roof:

• PES fabric one-sided PVC coating, high-strength, water-proof, surface weight approx. 300 g/m², or
• PES fabric double-sided PVC coating, high-strength, water-proof, surface weight approx. 420 g/m², or
• PES fabric double-sided PVC coating, high-strength, water-proof, self-extinguishing, surface weight approx. 700 g/m²

Internal partition curtain – PES fabric one-side PUR coating, water-proof.
Isolating liner – Quilted material consisting of three layers: PES fabric, PES fleece and PES fabric resp. non-woven, surface weight approx. 250 g/m2.
