Inflatable decontamination showers

Decontamination showers with inflatable structure are designed for the decontamination and cleaning of personnel or materials, but it can be used as a mobile sanitary facility during rescue actions and for clean-up of accident consequences.

Decontamination shower consists of an inflatable support structure, a basin to retain used water and a shower cabin. Distribution system to apply the decontamination solution or water, with a hand held shower rose or brush, anchor system, repair set, hand pump and transport bag are included.

Advantages

• Designed for the decontamination and cleaning of personnel or materials as well as a mobile sanitary facility during rescue actions and for liquidation of accidents
• Long lifetime with only minimum maintenance and repair required
• Selection from many types and sizes
• Easy handling and transport
• Low weight

• Self-acting deployment within a few minutes after being connected to air supply
• Inflatable with pressure air or electrical blower
• Quick-coupling device to connect the pressure air
• Safety relief valve

• Inflatable supporting structure with one chamber, retention basin and shower cabin
• High air tightness and strength of the inflatable structure
• Exchangeable cabin and basin

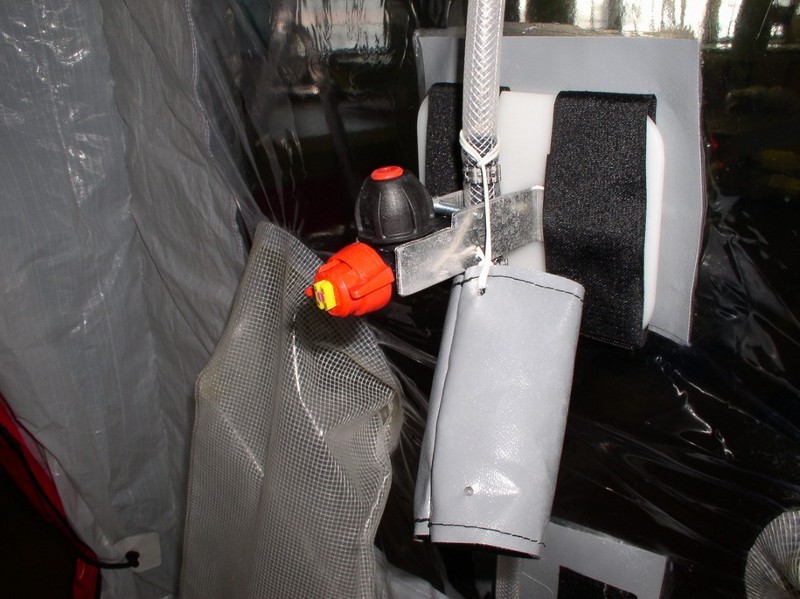

• Installed distribution system with respective number of nozzles and a hand-held rose with nozzle to apply the decontamination solution or water with minimum consumption
• Green marking for the „dirty” entrance, red marking for the “clean“ exit
• Water supply through quick-coupling device GEKA with female thread G1

• Anchor set, repair set and hand pump are included

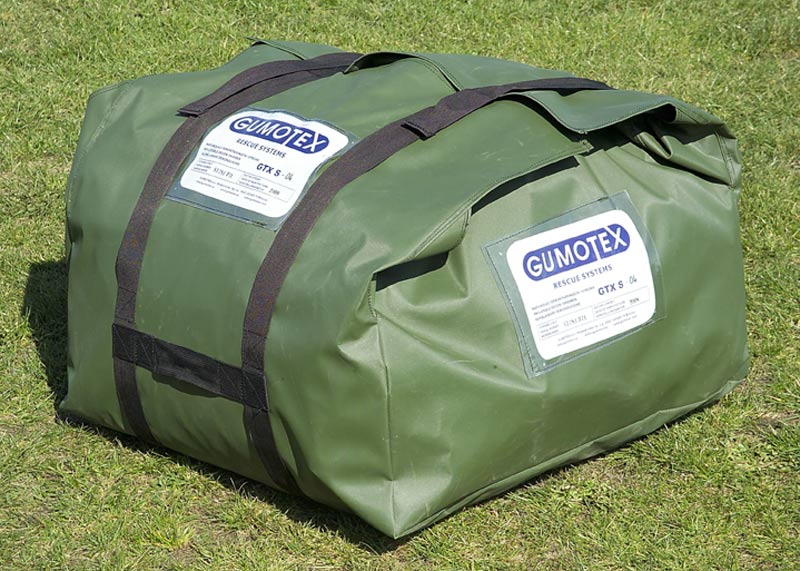

• Packed in a transport bag

• Windows made from transparent film with gloves for handling can be built-in
• A different water distribution arrangement is possible upon request
• Optional equipment with a brush
• An integrated outside basin can be added
• Optional additional equipment:
  • pumps,
  • grids and mats,
  • containers and tanks for contaminated solutions,
  • admixing device,
  • water heater etc.

Technical parameters

Shower type	Počet sprchových kabin	Internal useful area (m2)	3D model of frame	Figure
GTX-S02	1	2,5
GTX-S04	1	2,7
GTX-S05	3	4,3
GTX-S06	1	4
GTX-S07	1	6
GTX-S09	2	8

Note: Data in the chart are indicative.

Colours available

Material used

Retention basin – PES textile double-sided PVC coating, high-strength, abrasion proof, water-proof, with anti-skid treatment, surface weight approx. 520 g/m²
Inflatable structure – PAD fabric double-sided rubber mixture coating, high-strength, abrasion resistant, air-proof
Shower cabin – PP textile double-sided PE coating
