CC Pressure Systems - Fittings
Pressure Bends
Pressure Bends consist of laminated pipe segments and are often used to handle curves on pipeline routes.
| Physical Properties | |
| Nominal Diameter [DN] | 150 - 3000 mm |
| Nominal Pressure [PN] | 1 - 10 bar |

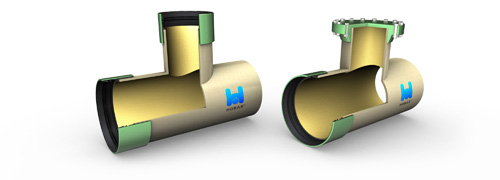

Pressure T-Piece
Pressure T-Pieces are used to connect pipes at a right angle. The tee is composed of segments, for the main pipe and as for the connections. The outlet can be made with standard coupling or as an inspection opening.
| Physical Properties | |
| Nominal Diameter [DN] | 150/150 - 3000/3000 mm |
| Nominal Pressure [PN] | 1- 10 bar |
Pressure Reducers
Pressure Reducers serve as a transition between two pipes of different diameters.
| Physical Properties | |
| Nominal Diameter [DN] | 200/150 - 3000/2500 mm |
| Nominal Pressure [PN] | 1- 10 bar |
Pressure Flanges
Pressure Flanges can be supplied as loose, fixed or blind flanges - with a GRP or steel ring.
| Physical Properties | |
| Nominal Diameter [DN] | 150/150 - 1600/1600 mm |
| Nominal Pressure [PN] | 1- 10 bar |
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
