FASERFIX SUPER 300

FASERFIX SUPER 300

FASERFIX®SUPER


  • the channels are manufactured from a fibre reinforced concrete which makes them extremely strong
  • the SIDE-LOCK grating system gives ease of installation saving time and money
  • there are many different gratings available giving the range enormous flexibility

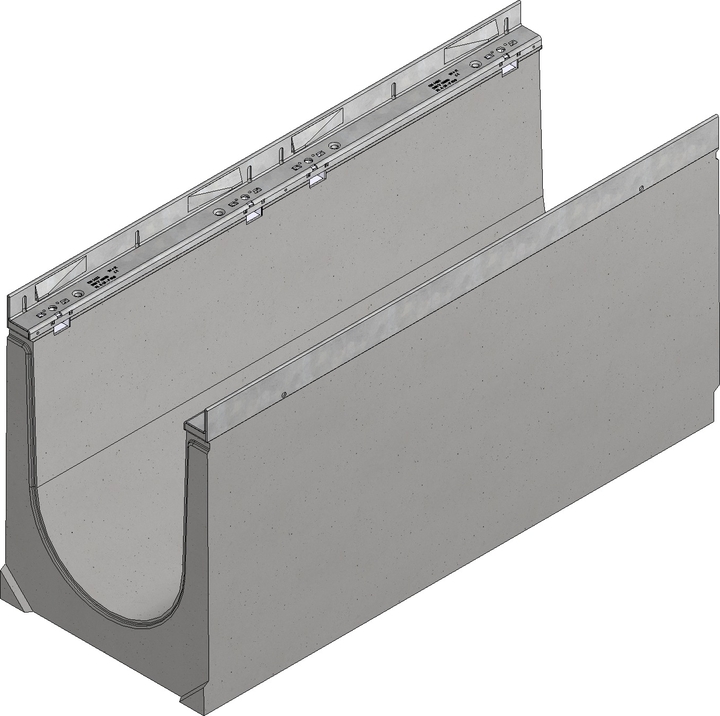

FASERFIX SUPER 300 - Channels with galvanised angle housing
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 01
 1000 390 415 803 157,0 4000
Type 01 H
 1000 390 630 1202 260,0 4044
Type 0105
 500 390 415 803 75,0 4001


FASERFIX SUPER 300 - Channels angular with galvanised angle housing
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 01 E
 1000 390 415 900 150,0 4105



Gratings

FASERFIX SUPER 300 - Gratings, class C 250
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 377 40 1334 18,7 4064
Mesh grating MW 30/15, galvanised
 1000 377 40 2127 32,1 4075
Mesh grating MW 30/15, galvanised
 500 377 40 2127 17,0 4076
Mesh grating MW 30/30, galvanised
 1000 377 40 2355 29,1 4073
Mesh grating MW 30/30, galvanised
 500 377 40 2355 15,2 4074


FASERFIX SUPER 300 - Gratings, class D 400*
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 377 40 1334 20,6 4063
* Not for use across the carriageway of highways or motorways in moving traffic.



FASERFIX SUPER 300 - Gratings, class E 600
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
GUGI-Ductile iron mesh gratlng MW 20/30, black
 500 377 40 1172 21,8 4068
Solid ductile iron grating, black
 500 377 40 - 21,5 4262


FASERFIX SUPER 300 - Gratings, class F 900
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 377 40 1334 23,5 4061



Accessories

FASERFIX SUPER 300 - Accessories
  Length mm Width mm Height mm Weight kg Item No.
Trash box with galvanised bucket, two parts with ductile iron grating SW 20, black, class F 900
 510 390 850 207,0 4052
Intersection units, two parts with solid ductile iron grating, black, class E 600
 510 390 850 207,0 4352
Extension part
 510 390 400 82,0 4054
PVC-Connection DN 200
 - - - 0,8 907
End cap closed, galvanised, type 01
 - 390 415 2,7 4081
End cap closed, galvanised, type 020
 - 390 630 3,7 4083
End cap with horizontal UPVC-outlet DN 200, galvanised, type 01
 - 390 415 2,8 4085
End cap with horizontal UPVC-outlet DN 200, galvanised, type 020
 - 390 630 4,5 4088
Mitre cuts NW 300 (price per cut, two cuts necessary)
 - - - 0,1 998
Drilling of connecting holes DN 200
 - - - 0,1 974
Inserting of PVC union connectors DN 200*
 - - - 0,1 984
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
 - - - 1,0 19000
Primer Masterflex 700 A SP, capacity 1000 ml
 - - - 1,2 20000
Primer Masterflex 700 FE (steel), capacity 1000 ml
 - - - 1,1 19950
Cutting to length of NW 300
 - - - 0,1 993
Toolkit for sealing material Masterflex 700 FR Gun Grade
 - - - 3,1 10025
Fixing-system EP, empty pipe in the channel bottom, (2 pieces per metre)
 - - - 0,1 703
Steelbars for fixing system EP (2 pieces per metre)
 - - - 0,1 704
Installation advise FASERFIX SUPER channel 300
 - - - 2,3 136242
* We can additionally insert SML- or PE-HD outlets on appointment
** Consumption for channel type 020: approx. 169 ml per joint.
