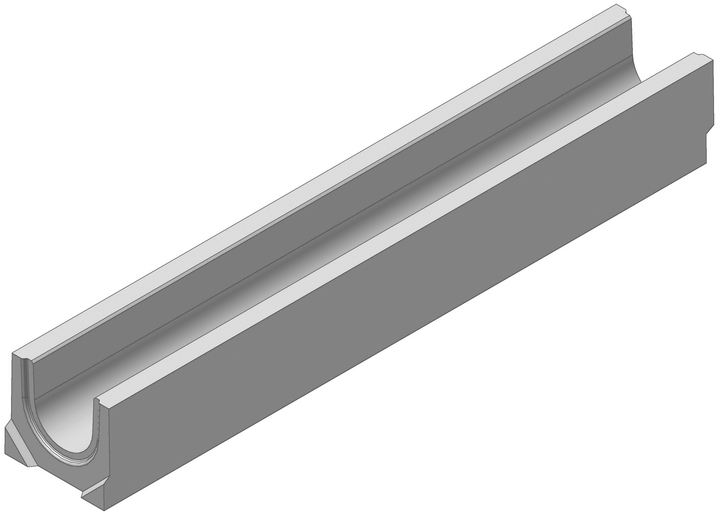

FASERFIX STANDARD 100 E

FASERFIX STANDARD 100 E

FASERFIX STANDARD

  • easy to install saving time and money
  • manufactured of fibre reinforced concrete for strength
  • resistant to frost and road salt

FASERFIX STANDARD E 100 - Channels
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 01
 1000 160 140 89 29,0 6200
Type 01L with hole*
 1000 160 140 89 30,0 6300
Type 010
 1000 160 194 143 38,0 6242
Type 010L with hole*
 1000 160 194 143 39,4 6342
Type 0105
 500 160 140 89 15,0 6249
* Distance from middle of the hole (DN100) to the end of the channel: 100 mm.

FASERFIX STANDARD E 100 - Channels with built-in fall 0,6 %
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 1
 1000 160 140 - 146 89 32,0 6201
Type 2
 1000 160 146 - 152 95 32,0 6202
Type 3
 1000 160 152 - 158 101 33,0 6203
Type 4
 1000 160 158 - 164 107 34,0 6204
Type 5
 1000 160 164 - 170 113 35,0 6205
Type 6
 1000 160 170 - 176 119 35,0 6206
Type 7
 1000 160 176 - 182 125 35,0 6207
Type 8
 1000 160 182 - 188 131 35,0 6208
Type 9
 1000 160 188 - 194 137 35,0 6209
Type 10
 1000 160 194 - 200 143 38,0 6210



Gratings

FASERFIX STANDARD E 100 - Gratings, car traffic
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Slotted grating SW 9, galvanised
 1000 158 21 280 2,3 6270
Slotted grating SW 9, garvanised
 500 158 21 280 1,1 6271
FASERFIX STANDARD E gratings heighten the channel upper edge 4 mm.

FASERFIX STANDARD E 100 - Gratings, class B 125
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Mesh grating MW 30/10, galvanised
 1000 158 20 650 3,4 6280
Mesh grating MW 30/10, galvanised
 500 158 20 650 1,8 6281
FASERFIX STANDARD E gratings heighten the channel upper edge 4 mm.

FASERFIX STANDARD E 100 - Gratings, class C 250
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
GUGI-Ductile iron mesh grating MW 20/30, black
 500 158 14 444 3,2 6267
GUGI-Ductile iron mesh grating, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
 500 158 14 444 3,4 6467

FASERFIX STANDARD E gratings heighten the channel upper edge 4 mm.
We recommend to fix the GUGI-Ductile iron mesh gratings with locking handle art.-no. 5095 roadworthy.



Accessories

FASERFIX STANDARD E 100 - Accessories
  Length mm Width mm Height mm Weight kg Item No.
Trash box with plastic bucket
 500 160 480 41,4 6253
Trash box with galvanised bucket
 500 160 480 42,4 6255
Foul air trap DN 100 with hole
 - - - 0,2 964
UPVC-outlet DN 100
 - - - 0,2 903
End cap closed, galvanised, Type 01
 - 160 140 0,3 6290
End cap closed, galvanised, Type 010
 - 160 194 0,4 6291
End cap with horizontal PVC-outlet DN 100, galvanised, Type 010
 - 160 194 0,5 6297
Locking handle for ductile iron gratings
 - - - 0,1 5095
Locking handle for all slotted gratings
 - - - 0,1 5090
Cutting to length of NW 100
 - - - 0,1 994
Mitre cuts NW 100 (price per cut, two cuts necessary)
 - - - 0,1 999
Drilling of connectiong holes DN 100
 - - - 0,1 977
Inserting of PVC union connectors DN 100 *
 - - - 0,1 982
