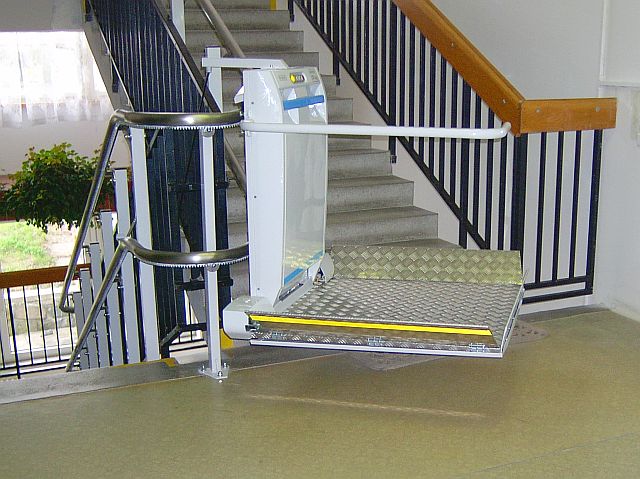

CPM 300 sloping staircase platform
Main advantages of the platform
- Simple solution of architectural barriers caused by staircases, balconies, terraces, slopes etc.
- Simple operation, easy maintenance, and reliable operation.
-
Various extra modifications and accessories can be performed on request, e.g.:
- various types of platform controls
- loudspeaking telephone
- automatic tilting of the transport plate
- modification of dimensions of the transport plate for spatial reasons etc.
- Complete „turnkey“ supplies including design documents, assembly, revision and commissioning.
- The platforms can be installed in new as well as existing buildings and in an external as well as an internal environment.
- All our equipment is provided with guarantee and post-guarantee service.
- The equipment is provided with a TÜV CZ s.r.o. certificate and meets all current standards and regulations, including the requirements of Decree No. 398/2009 Coll.
Technical parameters
| Sloping angle | 0 - 45° |
| Maximum dimensions of the transport plate | 1 400 × 900 mm |
| Load bearing capacity of the platform | 225 kg |
| Travel speed | 0,06 m/s |
| Travel length | až 50 m |
| Working voltage | 3 × 400 V / 50 Hz |
| Power input | 400 W |
Product gallery
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
