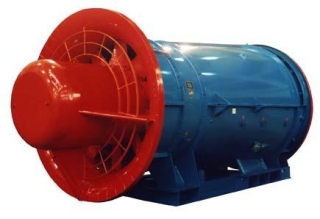

Axial and Radial Fans

For air-conditioning and industrial ventilation

APB 1120 up to 2240

• volume rate of flow 7 up to 100 m3.s-1
• total pressure 180 up to 1 480 Pa
• temperature of transported air -20 up to +40 °C
• sizes 1 120; 1 400; 1 800 mm (2 240 mm for road tunnels ventilation)

APJ 1 400 and 1 800

• volume rate of fow 12 up to 92 m3.s-1
• total pressure 200 up to 1 300 Pa
• temperature of transported air -20 až +40 °C
• sizes 1 400 and 1 800 mm

Axial overpressure APZC

• volume rate of flow 0,7 up to 6,5 m3.s-1
• total pressure 30 up to 450 Pa
• temperature of transported air -30 to +60 °C
• sizes 500 and 630 mm

For cooling towers with forced draught

Axial overpressure APL fans

• volume flow rate 170 up to 850 m3.s-1
• total pressure 57 up to 220 Pa
• temperature of transported air up to +40 °C at relative humidity up to 100 %
• sizes D = 6,000, 8,000 and 10,400 mm

Axial overpressure APMA fans

• volume rate of flow 52 to 215 m3.s-1
• total pressure 30 to 220 Pa
• temperature of transported gaseous fluid - 15 to + 40 °C, relative humidity up to 100 %
• size D = 4 500 mm

For air coolers and condensers

Axial overpressure APF fans

They are adapted for fastening to air coolers driven by an electric motor with belt drive. Other use must be agreed on with the manufacturer.

• volume rate of flow 7,5 to 105 m3.s-1
• total pressure 55 to 310 Pa
• temperature of transported gaseous fluid - 30 to + 40 °C
• sizes D = 1 800; 2 240; 2 800; 3 550 mm (sizes 2 240 and 3 550 mm are suitable also for extra low temperatures)

Axial overpressure APMB fans

• volume rate of flow 4,5 to 58 m3.s-1
• total pressure 10 to 215 Pa
• temperature of transported gaseous fluid +5 up to 45 °C, relative humidity up to 100 %
• sizes D = 1 600 and 2 400 mm for micro-coolers

For undergrounds (subways) ventilation

Axial overpressure fan APC reversibile

• volume rate of flow in the main direction 7 up to 81 m3.s-1
• volume rate of flow in the reversible direction 7,5 up to 58 m3.s-1
• total pressure 100 to 990 Pa
• temperature of transported gaseous fluid -20 up to +40 °C
• sizes 1 400 and 1 800 mm

For road and railways tunnels ventilation

Axial overpressure fan APW

• volume rate of flow 4,2 to 52,8 m3.s-1
• static draught 106 to 2 734 N
• temperature of transported gaseous fluid -20 to +40 °C, relative humidity up to 95 %
• sizes 500 up to 1 250 mm

Axial overpressure APB

• volume rate of flow 35 to 105 m3.s-1
• total pressure 180 to 1000 Pa
• temperature of transported gaseous fluid -20 to +40 °C
• size 2 240 mm

Axial overpressure APJ

• volume rate of flow 65 to 250 m3.s-1
• total pressure 350 to 2 200 Pa
• temperature of transported air - 20 to + 40 °C for 2 hours up to +250 °C
• size 2 800 mm

Axial overpressure fan APH

• volume rate of flow 6 to 808 m3.s-1
• total pressure 240 to 5 450 Pa
• temperature of transported gaseous fluid - 20 to + 40 °C
• sizes D = 1 800 and 3 550 mm

For blowing air and exhaust flue gases in power plants

Axial equipressure ARK and ARM fans

Axial constant-pressure fans ARK and ARM D = 710 to 4000 mm (hereinafter called fans) are determined for power plant and industrial operations.

• volume rate of flow 2,5 to 600 m3.s-1
• total pressure 250 to 9 100 Pa
• temperature of transported gaseous fluid up to +250 °C

For main mine ventilation fans

Axial equipressure ARK and ARM fans

Axial constant-pressure fans ARK and ARM D = 710 to 4000 mm (hereinafter called fans) are determined for power plant and industrial operations.

• volume rate of flow 2,5 to 600 m3.s-1
• total pressure 250 to 9 100 Pa
• temperature of transported gaseous fluid up to +250 °C

Radial high-pressure fans

Radial high-pressuere RVM fans

• volume flow rate 0.35 up to 180 m3.s-1
• total pressure 700 up to 15 000 Pa
• temperature of transported air -20 up to +400 °C
• diameters 400 up to 1 250 mm directly or with coupling
• diameters 1 600 up to 2 500 mm with coupling
  • suction in axis
  • with a suction chamber
  • double-sided suction

Radial high-pressure RVG fans

• volume flow rate 1 500 m3.s-1
• total pressure 29 500 Pa
• temperature of transported air from -15 to +40 °C
• diameter 560 mm

Radial middle-pressure fans

Radial middle-pressure RSB fans

• volume flow rate 0.3 up to 40 m3.s-1
• total pressure 400 up to 20,000 Pa
• temperature of transported air -20 up to +400 °C
• standard type has diameters 400 up to 1 250 mm directly with coupling or in larger diameters according to customer´s request

Radial middle-pressure fan RSM

• volume rate of flow 2 to 70 m3.s-1
• total pressure 300 to 4 500 Pa
• temperature of transported gaseous fluid from -20 to +250 °C
• sizes 800 up to 2 000 mm - with coupling one-sided suction
