Accessories

Pressure bottle

• for the inflation of supporting structures of tents, showers, basins, but also walkways and UZC
• filled with compressed air
• equipped with a release valve and a high-pressure hose
• hose fitting is compatible with the quick-coupling device on the inflation valve cap (tents, showers, basins) or with the valve (UZC, walkways)

Bottle volume	7 l
Max. pressure	300 bar
Recommended filling pressure	200 bar
Hose pressure	20 bar
Hose length	1 m

Electrical blowers

Pump GTX-2

• for the inflation of supporting structures of tents, showers and basins
• for the air exhaustion out of the structure
• considerable acceleration of deployment and packing of the tent or shower







Power supply	220 V / 50 Hz
Output pressure	0,3 bar
Power	1 000 W
Dimensions	260 × 280 × 340 mm
Weight	11 kg
Hose length	1 m
Electrical cable	7 m

Pump GTX-3

Electric blower for the inflation of supporting structures is equipped with two openings (out of and into the device) with a big diameter providing for a quick inflation. The blower can be used for the air exhaustion out of the inflatable structure and thus accelerate the packing of the tent or the shower. Considerable acceleration of deployment and packing of the tent or the shower.







Power supply	220 V / 50 Hz
Output pressure	0,45 bar
Power	2 × 960 W
Dimensions	450 × 370 × 650 mm
Weight	19 kg
Hose length	1 m, Y adaptor, each arm 3 m
Electrical cable	10 m

Air condition

• mobile air conditioning device comprising of two separate parts, condenser unit (outer part) and evaporator (inner part), with a high cooling capacity







Cooling capacity	4,8 kW
Air capacity	680 m³/h
Blower steps	3
Energy class	B
Use (room dimensions) approx.	cca 140 m³
Loudness [dB(A)] – inner part*	48 / 50 / 52
Loudness [dB(A) ]– outer part*	51
Power supply	230 V / 50 Hz
Incoming power	1,61 kW
Connection piping length	3 m
Dimensions of the inner part H / W / D	695 / 470 / 335 mm
Dimensions of the outer part H / W / D	490 / 510 / 230 mm
Weight inner/outer part	35 / 13 kg

* Sound pressure – distance 1 m

Heating

Electric heater RE18

• Mobile automatic electric heater with the output of heat regulated in three steps









Heat output	18 kW
Switch over of the heat output	3 × 6 kW
Air capacity	1.600 m3/h
Power supply	400 V / 50 Hz
Power consumption	Max. 27,8 A
Dimensions - L × W × H	750 × 335 × 500 mm
Weight	28,7 kg
Accessories:	Hot air hose diameter 300 mm and length 7 m room thermostat fastening ratched

Electric heater ME18

• Heater with the four-positions switch to set the required output of heat to switch on the ventilation











Heat output	18 kW
Switch over of the heat output	4 × 4,5 kW
Air capacity	1.700 m3/h
Power supply	400 V / 50 Hz
Power consumption	3 × 26 A
Dimensions	43 × 39 × 61 mm
Weight	29,2 kg
Accessories	burned gases exhaustion hot air hose diameter 300 mm and length 7.6 m, room thermostat fastening ratched chassis and handles

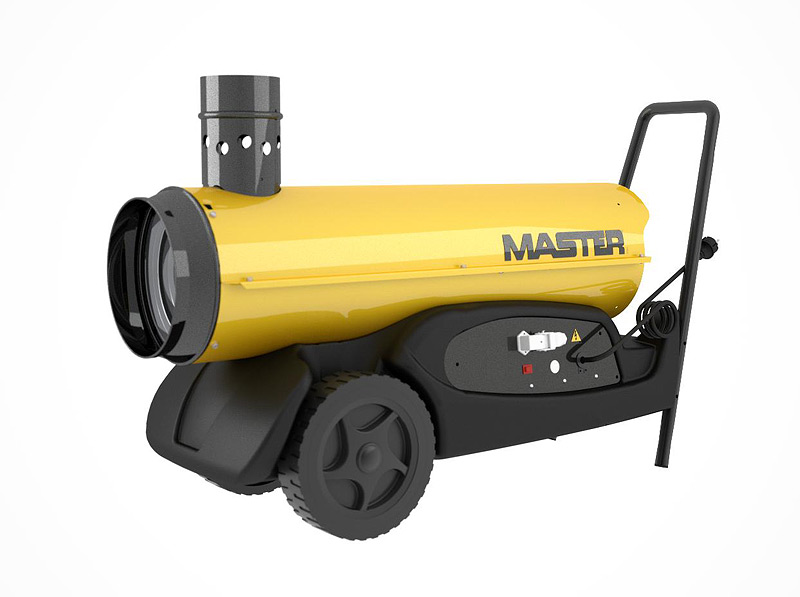

Automatic oil heater R022











• Mobile automatic fuel oil heater with a built-in burner, a tank and burned gases exhaustion

Fuel	heating oil, fuel oil
Fuel consumption	Max. 2,4 kg/hod
Heat output	22,5 kW
Air capacity	1.080 m3/h
Tank volume	40 l
Power supply	230 / 50 V/Hz
Dimensions - L × W × H	1265 × 470 × 685 mm
Weight	68 kg
Accessories	burned gases exhaustion hot air hose diameter 300 mm and length 7 m room thermostat fastening ratched

Fuel oil heater MN20

• Mobile automatic oil heater with a built-in burner, a tank and burned gases exhaustion.

Fuel	ELTO / Nafta
Fuel consumption	Max. 1,67 kg/h
Heat output	20 kW
Air capacity	550 m3/h
Power supply	230 V / 50 Hz
Power consumption	1,5 A
Tank volume	36 I
Dimensions	118 × 41 × 53 cm
Weight	61 kg
Accessories	Burned gases exhaustion hot air hose diameter 300 mm and length 7 m room thermostat fastening ratched

Lighting

Fluorescent tube lighting WE36W for the tent

Output	1 × 36 W
Power supply	230 V / 50 Hz
Coverage	IP 44
Cable length	1,5 m

Fluorescent tube lighting WE55W for the tent











Output	1 × 55 W
Power supply	230 V / 50 Hz
Coverage	IP44
Cable length	1,5 m

Industrial light for the tent IXP 2 × 55 W













Output	2 × 55 W
Power supply	230 V / 50 Hz
Coverage	IP65
Dimensions	639 × 190 × 127 mm
Cable length	1,5 m

Lighting balloon











• Portable lighting unit
• Ideal for not clearly arranged spaces and terrain
• Very small packed dimensions
• Optional output 1000 to 4000 Watts
• Halogenous bulb or HQI discharge lamp

Collapsible beds, tables, benches, chairsy

Inflatable mattress

• Ideal for lodging in an inflatable tent
• 100 % cotton with one-sided natural rubber coating
• Dimensions upon request

Camp bed

• Folding camp bed consisting of a supporting metal structure from aluminium profiles 30 x 30 and textile sheet for lying drawn on the side rods of the structure
• Packed in a textile weatherproof bag with straps for carrying



Bed dimensions	196 × 67 × 45 cm
Collapsed dimensions	80 × 17 × 17 cm
Weight	7,2 kg

Collapsible table with benches



Table dimensions	115 × 69 × 73 cm
Bench dimensions	96 × 23 × 43 cm
Collapsed dimensions	115 × 69 × 9,5 cm

Collapsible Bench



Bench dimensions	195 × 44 × 30 cm
Collapsed dimensions	93 × 10 × 30 cm

Collapsible chair



Chair dimensions	86 × 50 × 53 cm
Collapsed dimensions	113 × 50 × 14 cm

Floor

AP Floor

• Very high loading capacity
• High shock resistance
• Wit antiskid surface
• Non-flammable
• Chemically inert
• Resistant against oil derivates

Material	Polypropylen
Static load	80 t/m2
Loading capacity for a moving vehicle per axle	do 3,5 t
Dimensions of 1 mat	966 × 275 × 34 mm
Loading capacity of 1 mat	2,025 kg
Number of pieces within 1 m2	4,76 m2
Weight	9,7 kg
Colour	black
Accessories	Safety locks for connections between individual mats access ramps

Floor PP

• Hexagon shape
• Very high loading capacity
• Low profile



Material	polypropylene, polyethylene
Weight of 1 mat	approx. 2,3 kg
Loading capacity of 1 mat	1 t
Temperature range for use	-30 až +60 °C
Dimensions of 1 mat	480 × 560 × 20 mm
Number of pieces within 1m2	5 pieces
Colour	grey

TP Floor

Floor in the hexagon shape with a high loading capacity and a low profile



Material	low density polyethylene PE-LD
Weight of 1 mat	0,24 kg
Loading capacity of 1 mat (1 hour)	20 °C … 15 t / m2, 40 °C … 8 t / m2
Loading capacity of 1 mat (10.000 hour)	20 °C … 8 t / m2, 40 °C … 5 t / m2
Temperature range for use	-40 až +60 °C
Dimensions of 1 mat	250 × 250 × 16 mm
Number of pieces within 1m2	16 pieces
Colour	white, yellow, red, blue, green, black, grey, orange
Accessories	plastic connections between individual mats straight and angle ramps

Load carpet

To be spread under or into the tent for decontamination station.
Dimensions: 80 × 120 cm.

Rubber mats

For decontamination station.
Dimensions: 80 × 120 cm







Pallet grates

Plastic grill are use for decontamination stand.
Dimensions: 80 × 120 cm







Mats under decontamination showers and basins

Dimensions upon request.

Flow heater with admixing device for the decontamination agent

• compact mobile flow heater
• for cleaning / decontamination of people and materials from dangerous substances
• contains a currentless, easy to operate device for admixing the decontamination agents
• suitable for the use of soap, lye and other alkali or acid media in concentrations from 0.2 to 10 %
• Integrated admixing device 1 % to 5 % for various decontamination agents, can be connected or disconnected by means of bypass
• 2 outflows for decontamination agent and water
• 2 outflows for clean water
• Optional connections – ¾” GEKA connection or D-connection



Flow rate	40
Operating pressure	15 bar with reduction to 6 bar
Water temperature	adjustable 30 °C to 60 °C
Internal burner thermostat	adjustable up to 140 °C
Heating output	approx. 90 kW
Fuel consumption	approx. 7,8 l/h
Power supply	230 V / 50 Hz
Input	0,3 kW
Coverage	IP 68 for connector
Voltage reduction	to 24 V
Cable length	10 m
Dimensions	890 × 570 × 800 mm
Weight	65 kg

Admixing device

• proportional metering pump
• solution to be metered is sucked in the set ratio
• for precise metering at variable flow rate
• free of electric power

Pumps

Slurry pump

• for pumping off contaminated pump out of decontamination basins, showers and tents



Float	yes
Pump drive	elektromotor 230 V
Rated output of electromotor	0,6 kW
Coverage	IP 68
Flow rate min.	0,6 (m3/ h)
Flow rate max.	11,4 (m3/ h)
Transportation height max.	9 m
Solid particles up	to 5 mm
Protection against dry run	yes
Medium temperature max.	35 °C
Weight	5,1 kg

Self-sucking pumps

• for pumping of clean and slightly contaminated water without any mechanical ingredients
• with installed protection against dry run (thermal sensor in the hydraulic part, used material with a higher temperature resistance)
• powerful pump motors for trouble-free permanent operation
• low noisiness
• pump body from stainless steel
• very short suction time
• pump protected against splashing water IP X4
• max. operating pressure 6 bar
• max. temperature of the pumped medium 35 °C
• frame for transport and the switch are not included

Pump feeding the water distribution system of decontamination tents and showers



Cable length (m)	2
Pump drive	electromotor 230 V
Rated output of electromotor	1,3 kW
Coverage	IP 44
Thermal sensor	yes
Height of suction max.	7 m
Flow rate min.	0 m3/ h
Flow rate max.	4,8 m3/ h
Transportation height max.	47 m
Transportation height min.	11 m
Number of stages	1
Connection dimension-suction	1
Connection dimension-delivery	1
Weight	13 kg

Pump feeding the water distribution system of decontamination showers



Cable length	2 m
Pump drive	electromotor 230 V
Rated output of electromotor	1,1 kW
Coverage	IP 44
Thermal sensor	yes
Height of suction max.	7 m
Flow rate min.	0 m3/ h
Flow rate max.	3,6 m3/ h
Transportation height max.	45 m
Transportation height min.	15 m
Number of stages	1
Connection dimension-suction	1
Connection dimension-delivery	1
Weight	12,8 kg

Pump set

• mobile pumping aggregate for decontamination tents and showers
• source of the sanifying solution for pressure distribution system and for pumping off the used sanifying solution out of the basin
• consists of two pumps, pressure vessel and control box with 220 V / 24 V voltage source
• pump inlets protected with filters, accessible after side covers removal
• hoses connection – quick-coupling device GEKA
• including interconnection hoses with connectors, suction basket, bottom suction basket


Dimensions: 600 × 400 × 610 mm
Weight: approx. 30 kg
Structure material: polished stainless plate
Power supply: 230 V / 50 Hz / 2 A
Detailed technical data upon request

Pump WD 5.0 (Johnson pump)

To produce pressure of 5 bar in the feeding line with 5 nozzles
The pressure is being compensated in the pressure vessel
There is a suction basket with a return valve on the sucking hose (1/2“) of the pump

Max. suction: 3 m
Switch on pressure: 3,7 bar
Switch off pressure: 5 bar
Motor: 185 W
Pump: Nylon
Membrane: Santropren
Supplies 3/8“ BSP, ½“ hose
Water temperature Max. +50 °C

Pump WPS 2.4 (Johnson pump)

For pumping off the used sanifying solution out of the retention basin.
There is a special basket on the suction hose (1/2“) to reach the minimum level on the bottom

Max. suction: 2 m
Motor: 87 W
Pump: Polypropylene
Membrane: Santropren
Supplies 3/8“ BSP, ½“ hose
Water temperature Max. +50 °C
Switched power supply AC/DC : SYS 1181-3A24
Input:
Input voltage: 90-264 V AC
Input frequency: 47-63 Hz
Input current: 5A
Peak starting current: 30A/230 V AC
Input clamps up to 2,5mm

Output:
Efficiency: 80 %
Protection against short-circuit and overvoltage at the output
Output triple clamps up to 2,5 mm
Output voltage: 24 V
Output: 300 W
Max. output current: 12,5 A
Pressure vessel INTERVAREM LC8
Volume: 8 l
Max. pressure: 8 bar
Connection: ¾“ DN
Diameter: 200 mm
Height: 330 mm
Weight: 2,95 kg

Roller bed – Conveyor

• for transport of people on a stretcher in decontamination tents and showers
• independent flexible transport route
• mobile on wheels with pivoted fork and brake
• transport possible even in bends
• with plastic or steel rollers
• variable in transport length, extensible
• individual conveyors connected by means of connection parts of 400 mm width and more

Loading capacity: between two supports 100 – 120 kg
Height: 700 to 1 100 mm
Roller: bed width 500 mm

Retention vessels and bags

Plastic retention basins

• in front of the entrance into the decontamination station
• volume 100, 140 and 200 l
• resistant against mechanical stress
• resistant against external impact
• light



Volume: 100, 140 a 200 l

Self-supporting water basin

Self-supporting basin serves e.g. as water source but even to retain slightly contaminated water. They are made of a high resistant material, equipped with a foam edge and filling valve through which they can be filled and operated easily.
Volume: 3, 5, 10 and 25 l

Foldable bags

Foldable, closable bags for used decontamination agents or waste water after decontamination. They are made of a high strength PES fabric double-sided PVC coated. Equipped with straps for carrying and openings for filling and discharging.

Volume: 20 to 250 l





Drums

• For storage of used protective clothing
• With cover and clamping ring

Volume: 60 l, 120 l and 220 l
